Galvion™ – SoloPack™

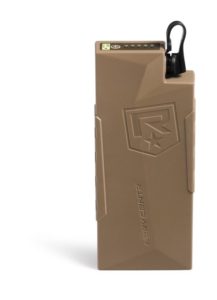

NERV CENTR® SOLOPACK™ BATTERY is a low-profile, rechargeable lithium ion battery that packs the energy needed for a 12 hour mission. Weighing approximately a pound, the battery is small enough to fit in a magazine pouch. The rugged SoloPack™ is designed to plug-and-play, offering a high power density to power currently fielded equipment and reducing the weight burden of carrying spare batteries.
KEY FEATURES
- Highest energy density in its class
- Fits inside M4 magazine pouch
- Push button activated state-of-charge display
- Wide operating temperature
- Compatible with existing chargers and devices
- NettWarrior Compatible
- SMBus 1 compatible
- Can be recharged while in-flight when connected to the Squad Power Manager™ (SPM) which is certified safe-to-fly
APPLICATIONS
- Soldier Systems
- Central power systems
- Portable field equipment
- Special Forces forward-operation equipment
TECHNICAL SPECIFICATIONS
| VOLTAGE RANGE | 11.0 V to 16.8 V | |
| NOMINAL VOLTAGE | 15.0 V | |
| NOMINAL CAPACITY | 6.8 Ah @ C/5 @ 23°C (73.4°F) | |
| MAX DISCHARGE | 5.0 A Continuous | |
| PEAK DISCHARGE | 15.0 A | |
| ENERGY DENSITY | 178 Wh/Kg | |
| WEIGHT | 550 g (1.2 lbs) | |
| DIMENSIONS (MM) | 181 x 77 x 30 (L x W x H) | |
| ENERGY | 98 Wh | |
| CYCLE LIFE | >500 Cycles | |
| OPERATING TEMP | • CHARGING: -20°C to +55°C (-4°F to +131°F)
• DISCHARGING: -32°C to +55°C (-25.6°F to +131°F) Note: A smart charger is required when charging below 0°C (32°F) or above 45°C (113°F) |
|
| STORAGE TEMP | -32°C to +60°C (-25.6°F to +140°F) | |
| CONNECTOR | Glenair Mighty Mouse 807-216-01ZNU6-6SY | |
| COMMUNICATION | SMBus v1.1 | |
| STATE OF CHARGE | 5 LED Push Button Activated 20% Increments | |
| EMI | MIL-STD-461, CE101, CE102, CS114, CS115, CS116, RE102, RE101, RS103 | |
| IMMERSION PROOF | Immersion proof to a depth of one meter as per MIL-STD-810 Method 512.6 | |
| SAFETY | • Over Voltage: 4.25 V • Re-settable Fuse: 70°C +/- 5°C Trip (158°F +/- 9°F)
• Under Voltage: 2.25 V (per cell) • Permanent Fuse: 91°C (195.8°F) • Over Current Protection 5.25 A • Re-settable short circuit protection: 15 A @ 3 ms |
|
| CHARGING | COMPATIBLE CHARGERS | NSN |
| Desktop Evaluation Charger | 6130-01-542-5108 | |
| Soldier Charger | 6130-01-545-1983 | |
| Nerv Centr Charger | 6130-01-665-1842 (National Stock Number) | |
| BTC-70801 | 6130-01-495-2839 | |
| BTC-70819 | 6130-01-555-7817 | |
| BTC-70844 | 6130-14-533-1900 | |
| BTC-70836 | 6130-01-527-2726 | |
| BTC-70870 VMC Lite | 6130-01-606-5296 | |
| BTC-70777 Combo Charger | 6130-01-605-5858 | |
| TRANSPORTATION | Class 9 Dangerous Goods.
Contact Galvion for transportation requirements. |
|
